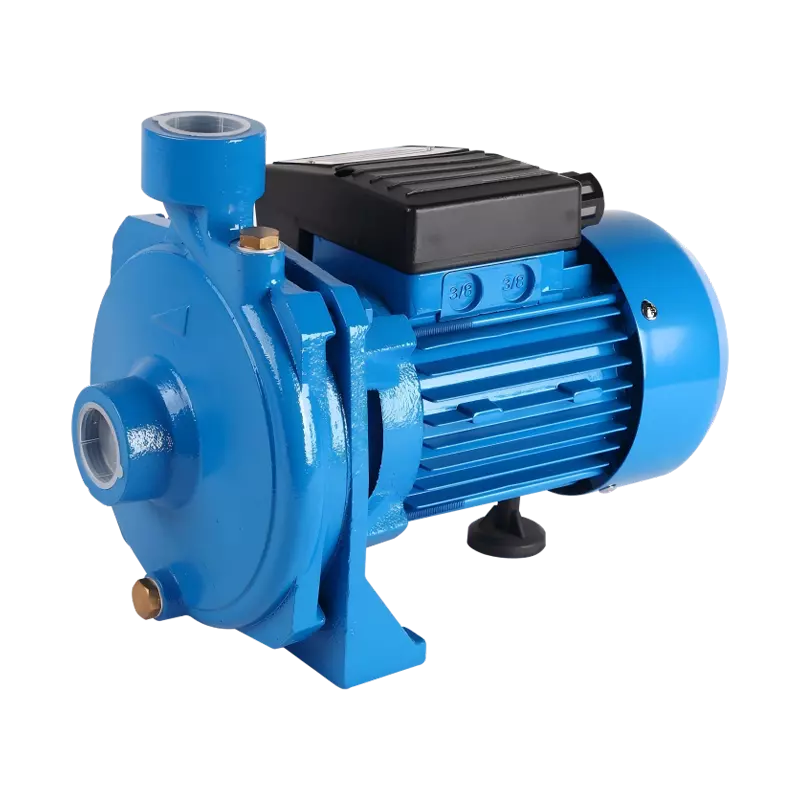

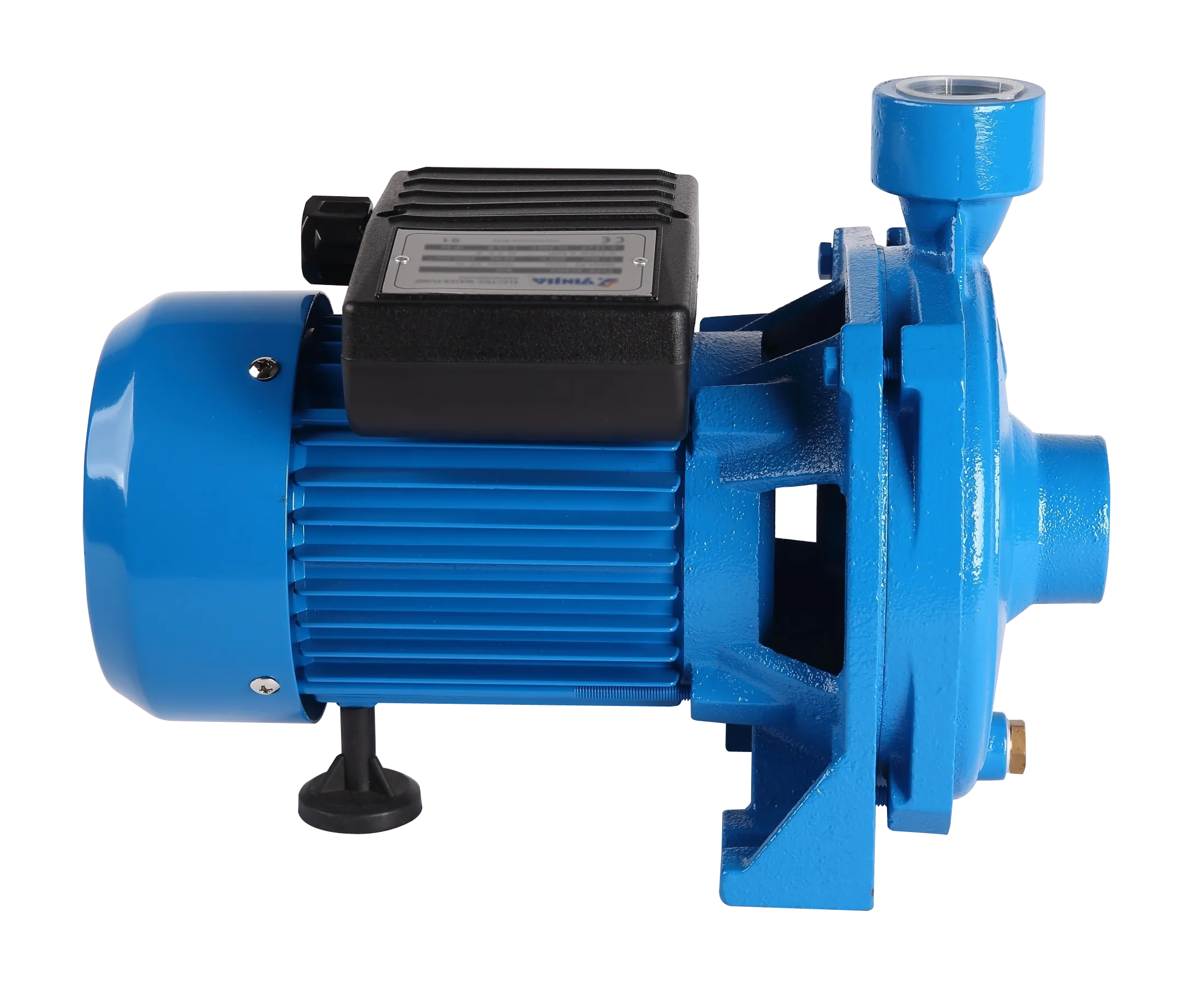

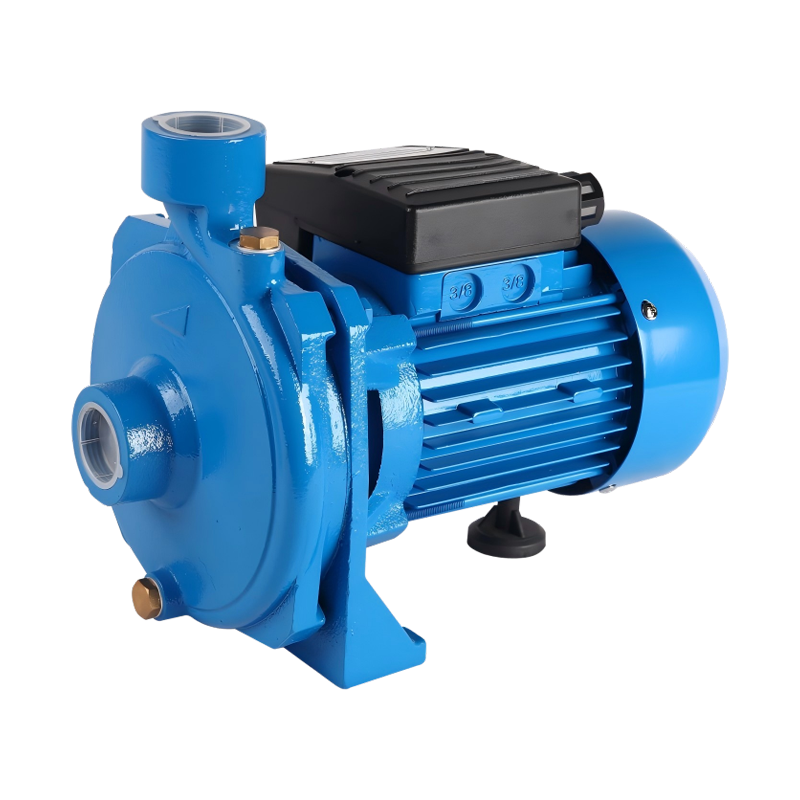

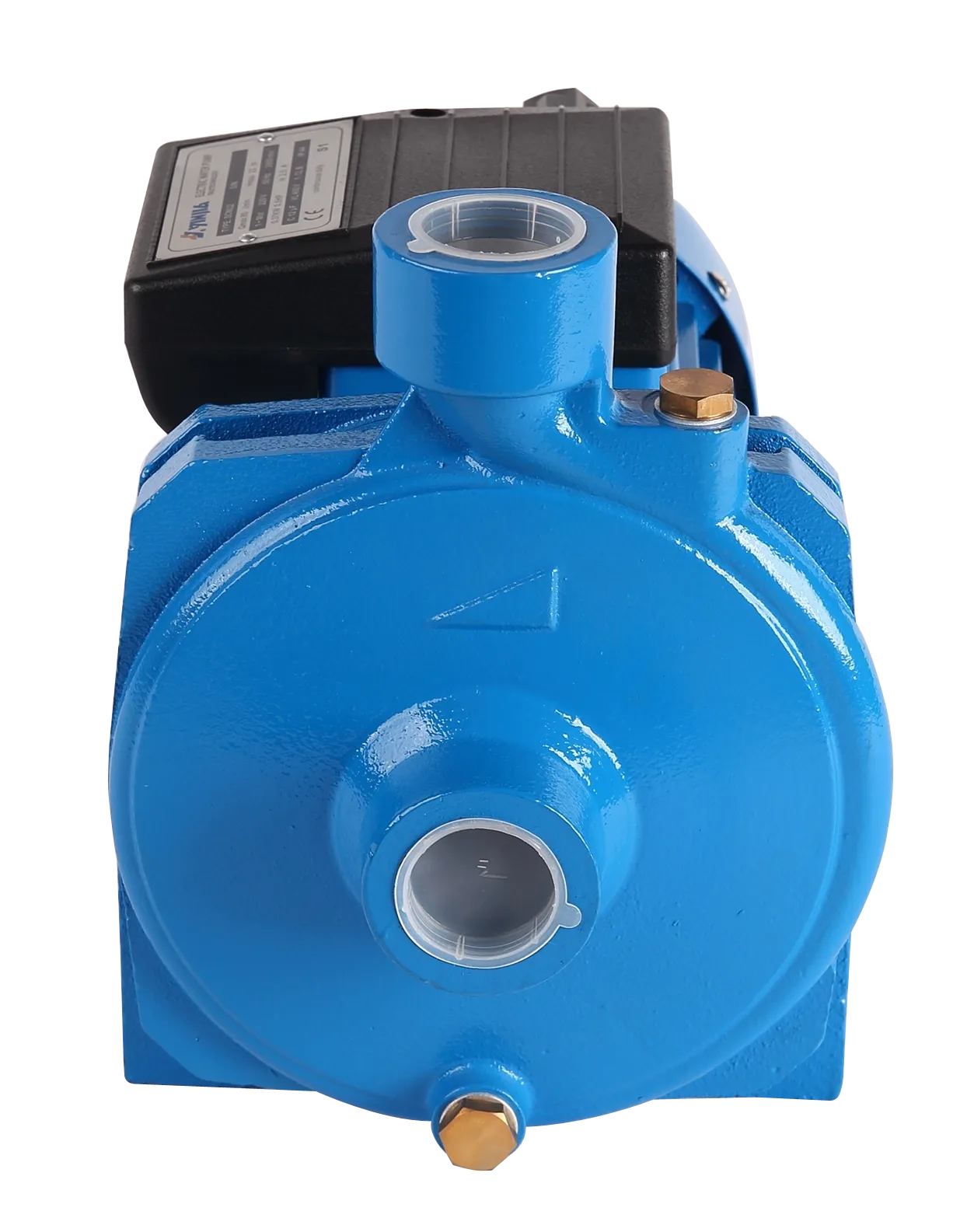

With years of experience in production electrical centrifugal water pump, YINJIA can supply a wide range of product. High quality electrical centrifugal water pump can meet many applications, if you need, please get our online timely service about product. In addition to the product list below, you can also customize your own unique electrical centrifugal water pump according to your specific needs. SCM series electrical centrifugal water pump belongs to the single-phase centrifugal pump category,is a classical and popular pump in the global market. Single impeller centrifugal pumps suitable to cover any small, medium or large capacity request, for domestic, agricultural and industrial purposes.The Heavy duty electric water pump is assembled with very resistant and durable materials which is able to guarantee a very high solidity and the almost total absence of wear over time. Pumps should be installed in a covered area, protected against the weather.
APPLICATIONS
-Suitable for use with clean water, or non-aggressive liquids only, without sand or other solid impurities.
-Suitable for industrial use and urban water supply,pressure boosting for high buildings and fire fighting,garden imgation,long-distance water transfer,heating ventilation and air controlling, circulation and pressure boosting for cold hot water, and supporting equipment etc.
DESIGN FEATURES
-Pump body/motor bracket: cast iron
-Impeller: Brass
-100% copper winding
-Built-in thermal protector for single phase motor
-Motor shaft: AISI 304 welded shaft
-Mechanical seal: Graphite/Ceramic/NBR/S.S304
SPECIAL FEATURES ON REQUEST
-Anti-rust treatment for casting
-PPO/SUS304 impeller
-AISI 1045 motor shaft
-Carbon/SiC/V mechanical seal
-Other voltage and frequnecy
-Insultation class: F
OPERATING LIMITS
-Total suction lift up to 6-8 mt. with foot valve
-Max. operating pressure: 8 bar.
-Max. ambient temperature: +40℃
-Max. liquid temperature: +90℃
-Max. altitude: +1000 mt.
MOTOR
-Insultation class: B
-Protection: IP44
-Speed of rotation: 2850rpm
-Continuous duty: S1

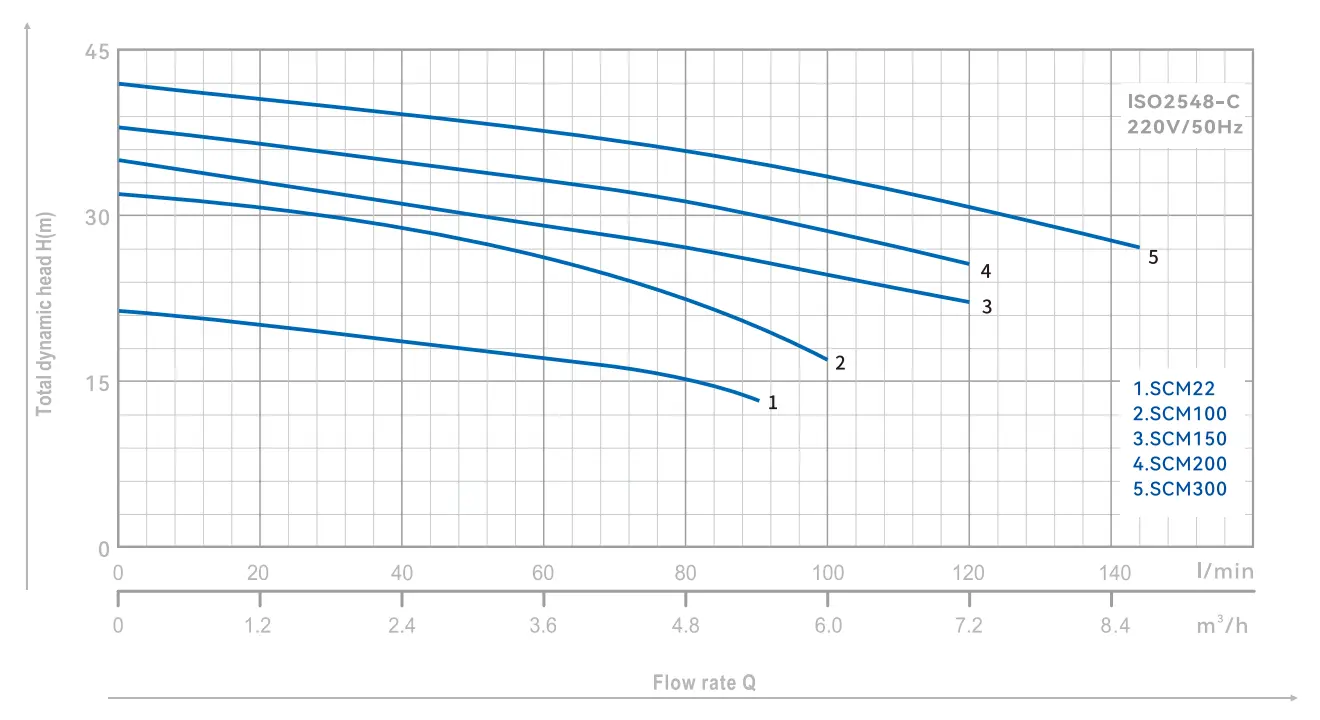

PERFORMANCE
SCM22 -0.37 kW / 0.5 HP - Max. Head 22m - Max. Flow 80 l/min - 1" water pump
SCM100 - 0.75 kW / 1 HP - Max. Head 30m - Max. Flow 100 l/min - 1" water pump
SCM150 - 1.1 kW / 1.5 HP - Max. Head 35m - Max. Flow 120 l/min - 1.5"*1.25" water pump
SCM200 - 1.5 kW / 2 HP - Max. Head 38m - Max. Flow 120 l/min - 1.5"*1.25" water pump
SCM300 - 2.2 kW / 3 HP - Max. Head 42m - Max. Flow 140 l/min - 1.5"*1.25" water pump

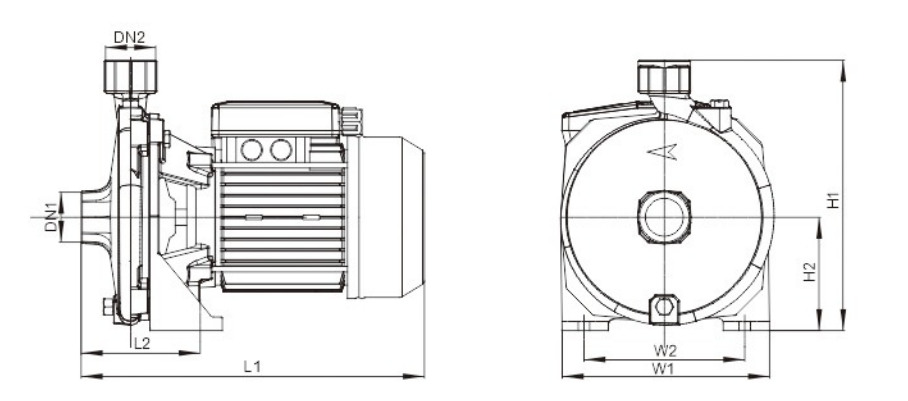

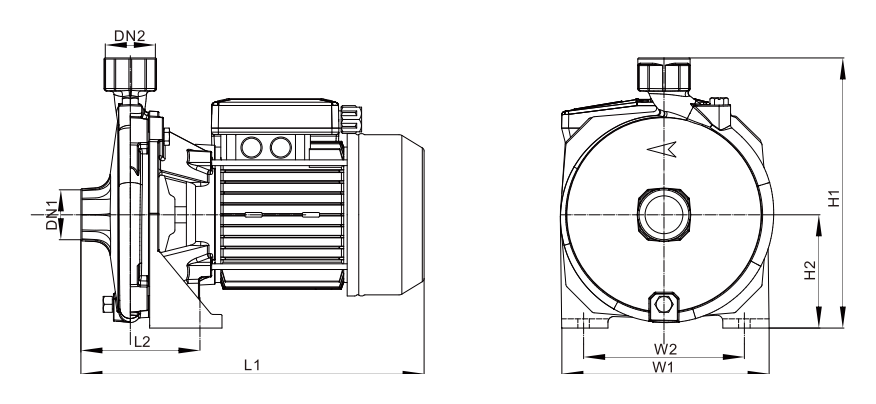

DIMENSIONS
SCM SERIES EXPLODING DRAWING
