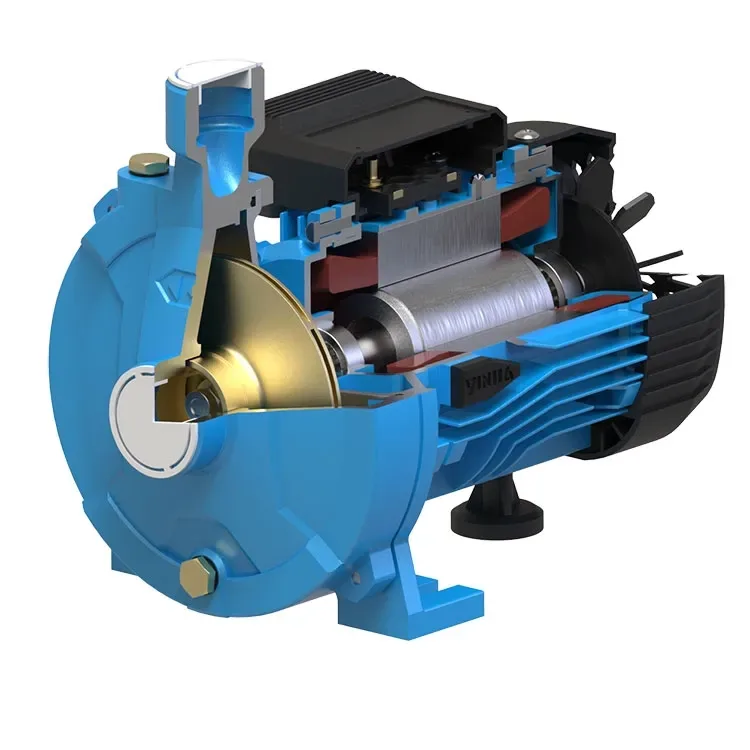

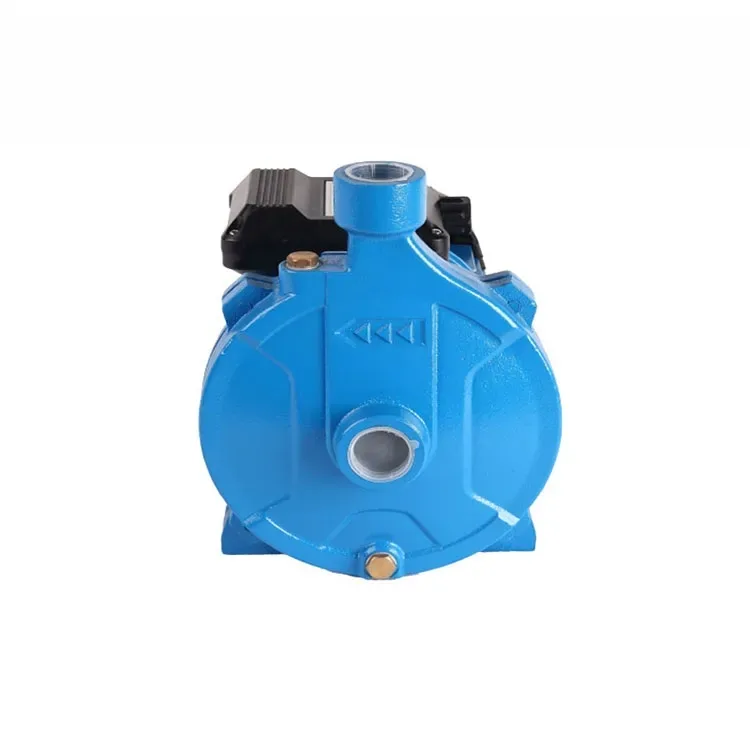

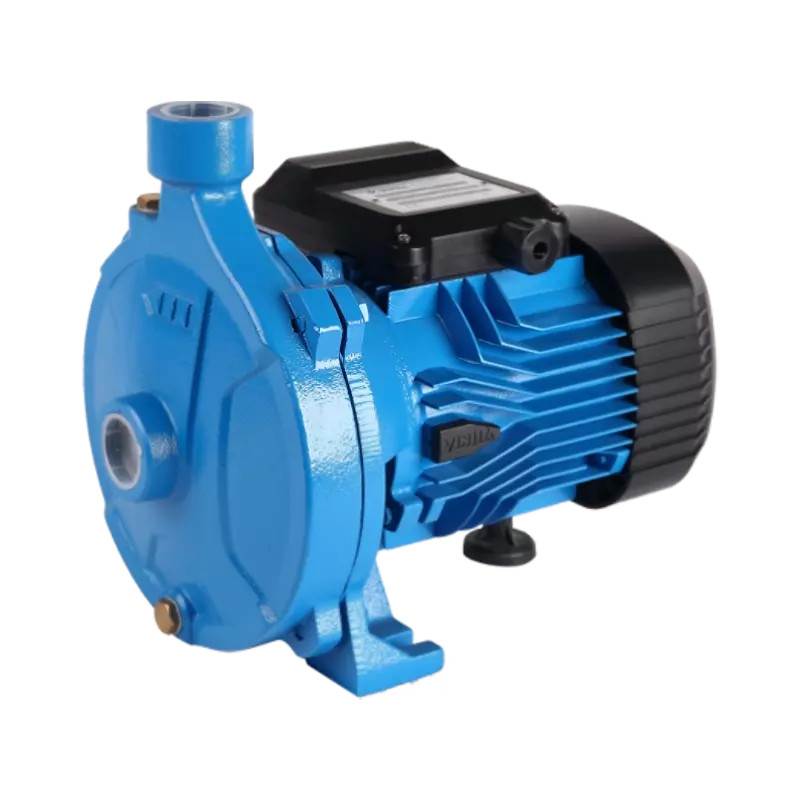

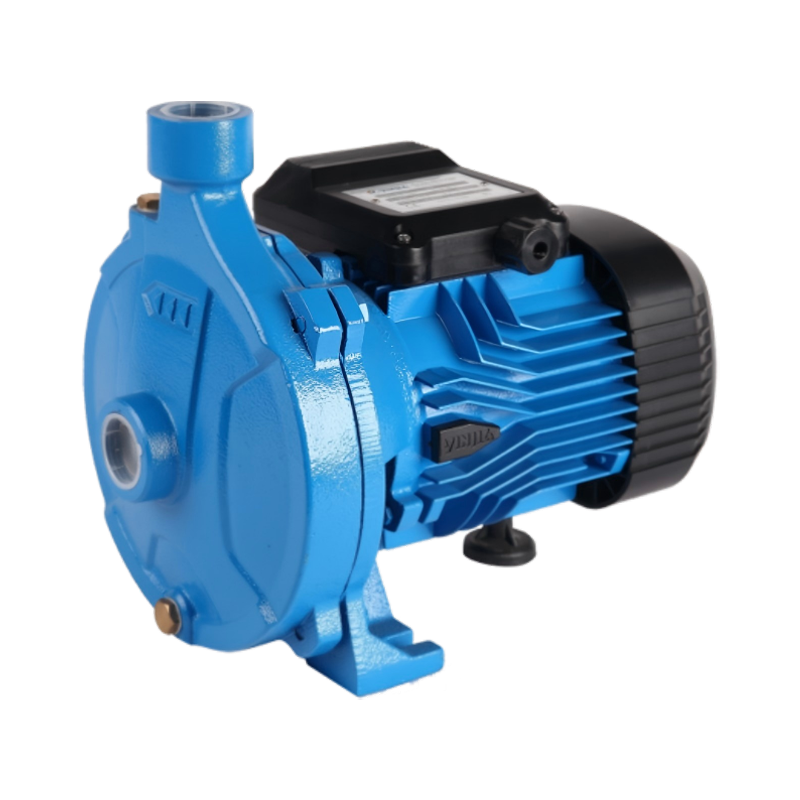

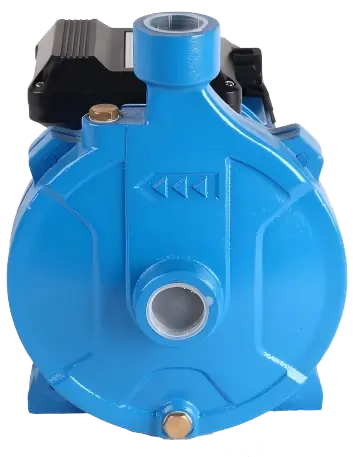

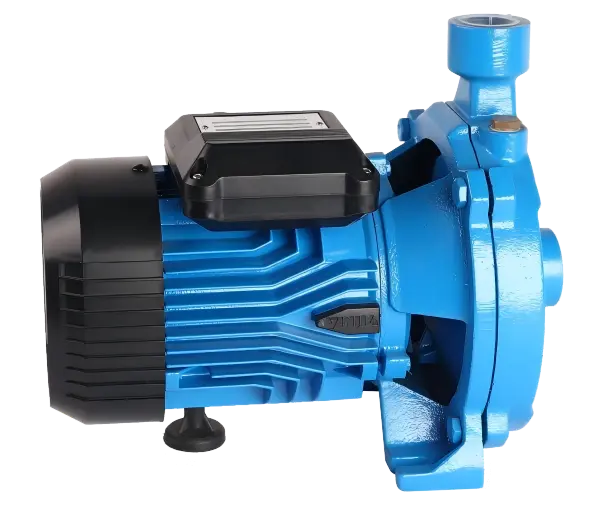

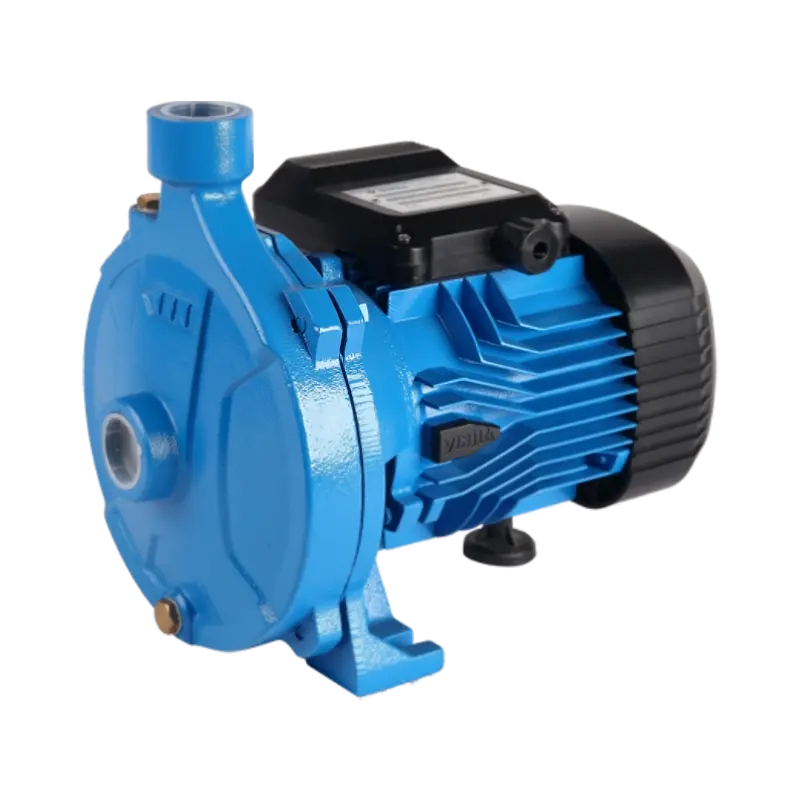

You are welcomed to come to YINJIA factory to buy the latest selling, low price, and high-quality new centrifugal pump. We look forward to cooperating with you. Cm series new centrifugal pump belongs to the single-phase centrifugal pump category,is our patent design pump, attractive appearance, compact and very silent. The Heavy duty electric water pump is assembled with very resistant and durable materials which is able to guarantee a very high solidity and the almost total absence of wear over time. Pumps should be installed in a covered area, protected against the weather.
APPLICATIONS
-Suitable for use with clean water, or non-aggressive liquids only, without sand or other solid impurities.
-Suitable for industrial use and urban water supply,pressure boosting for high buildings and fire fighting,garden imgation, long-distance water transfer,heating ventilation and air controlling, circulation and pressure boosting for cold hot water, and supporting equipment etc.
DESIGN FEATURES
-Pump body/motor bracket: cast iron
-Impeller: Brass
-100% copper winding
-Built-in thermal protector for single phase motor
-Motor shaft: AISI 304 welded shaft
-Mechanical seal: Graphite/Ceramic/NBR/S.S304
SPECIAL FEATURES ON REQUEST
-Anti-rust treatment for casting
-PPO/SUS304 impeller
-AISI 1045 motor shaft
-Carbon/SiC/V mechanical seal
-Other voltage and frequnecy
-Insultation class: F
OPERATING LIMITS
-Total suction lift up to 6-8 mt. with foot valve
-Max. operating pressure: 8 bar.
-Max. ambient temperature: +40℃
-Max. liquid temperature: +90℃
-Max. altitude: +1000 mt.
MOTOR
-Insultation class: B
-Protection: IP44
-Speed of rotation: 2850rpm
-Continuous duty: S1

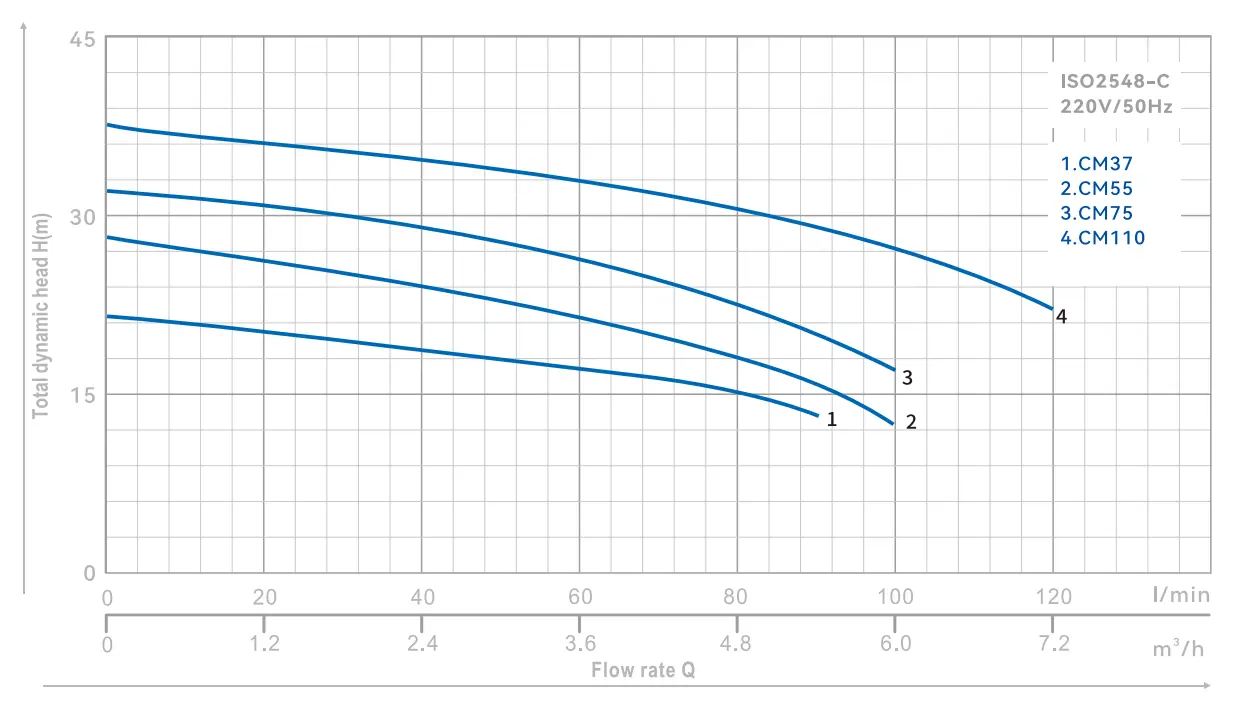

PERFORMANCE CHART
PERFORMANCE DATA
| MODEL | P2 | P1 (kW) | Ampere | Q(L/min-m³/h) | |||||||||
| 1~ | 0 | 20 | 40 | 60 | 80 | 90 | 100 | 120 | |||||
| 1~ | 3~ | HP | kW | 1~ | 1x220V 50HZ | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 5.4 | 6.0 | 7.2 |
| H (m) | |||||||||||||
| CM37 | CT37 | 0.5 | 0.37 | 0.51 | 2.37 | 22 | 20 | 19 | 18 | 16 | 14.5 | - | - |
| CM55 | CT55 | 0.75 | 0.55 | 0.74 | 3.51 | 28 | 25 | 24 | 21 | 18 | 16 | 12.5 | - |
| CM75 | CT75 | 1 | 0.75 | 0.99 | 4.62 | 32 | 31 | 29 | 26 | 24 | 20 | 17 | - |
| CM110 | CT110 | 1.5 | 1.1 | 1.44 | 6.75 | 38 | 36 | 34.5 | 33 | 30.5 | 29 | 27 | 22 |

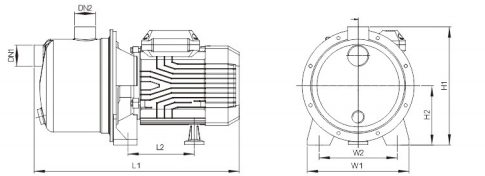

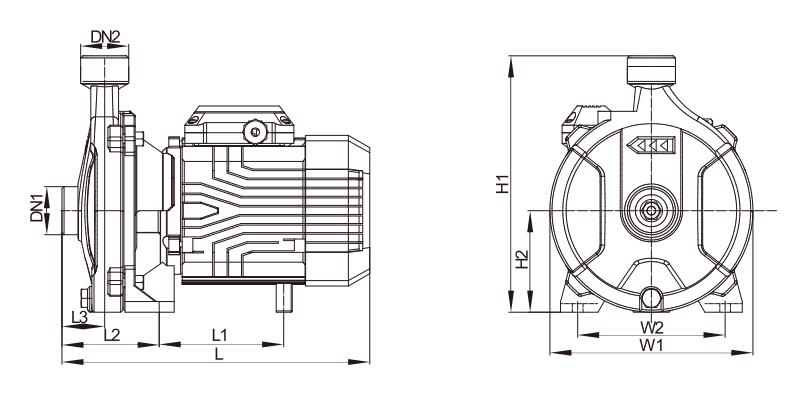

DIMENSIONS
| MODEL | Dimensions(mm) | Package Dimension | N.W | |||||||||||
| L | L1 | L2 | L3 | W1 | W2 | H1 | H2 | DN1 | DN2 | (mm) | W | H | (kg) | |
| CM37 | 265 | 105 | 89 | 40 | 157 | 112 | 205 | 85 | 1" | 1" | 280 | 190 | 230 | 8.2 |
| CM55 | 290 | 117 | 91 | 40 | 190 | 138 | 240 | 95 | 1" | 1" | 305 | 205 | 260 | 11.4 |
| CM75 | 290 | 117 | 91 | 40 | 190 | 138 | 240 | 95 | 1" | 1" | 305 | 205 | 260 | 12.5 |
| CM110 | 358 | 190 | 121 | 52 | 215 | 180 | 275 | 110 | 1.25" | 1" | 395 | 265 | 320 | 19.3 |
CM SERIES EXPLODING DRAWING
