Self-priming Pressure Booster Pumps

Model:GP125
YINJIA Pump is a professional surface clean water pump manufacturer in China since 1990, has specialized in manufacturing various of surface clean water pumps, as well as providing quality self-priming pressure booster pumps for the world. We are committed to providing high quality product at a competitive price and backed up with superior service. Welcome to inquiry for self-priming pressure booster pumps.

Send Inquiry PDF DownLoad

Product Description

Yinjia was set up formally in 1990, as one of the professional China Self-priming Pressure Booster Pumps manufacturers and factory. GP125 self-priming pressure booster pumps belongs to the single-phase self-priming peripheral pump category,is a best seller pump in the global market. The pump is assembled with very resistant and durable materials which is able to guarantee a very high solidity and the almost total absence of wear over time. Pumps should be installed in a covered area, protected against the weather.

Product Feature And Application

APPLICATIONS
-Suitable for use with clean water, or non-aggressive liquids only, without sand or other solid impurities.
-Suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.

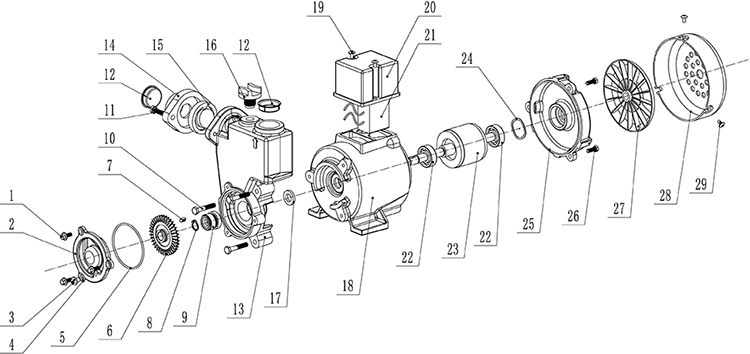

DESIGN FEATURES
-Pump body/motor bracket: cast iron
-Impeller: Brass
-Bearing: C&U
-100% copper winding
-Built-in thermal protector for single phase motor
-Motor shaft: Al SI 304 welded shaft
-Mechanical seal: Carbon/Ceramic/NBR/SUS304
SPECIAL FEATURES ON REQUEST
-Anti-rust treatment for casting
-No block system
-A1S11045 motor shaft
-Carbon/SiC/V mechanical seal
-Other voltage and frequnecy
-Insultation class: F
OPERATING LIMITS
-Total suction lift up to 6-8 mt. with foot valve
-Max. operating pressure: 8 bar.
-Max. ambient temperature: +40℃
-Max. liquid temperature: +90℃
-Max. altitude: +1000 mt.
MOTOR
-Insultation class: B
-Protection: IP44
-Speed of rotation: 2850rpm
-Continuous duty: S1
