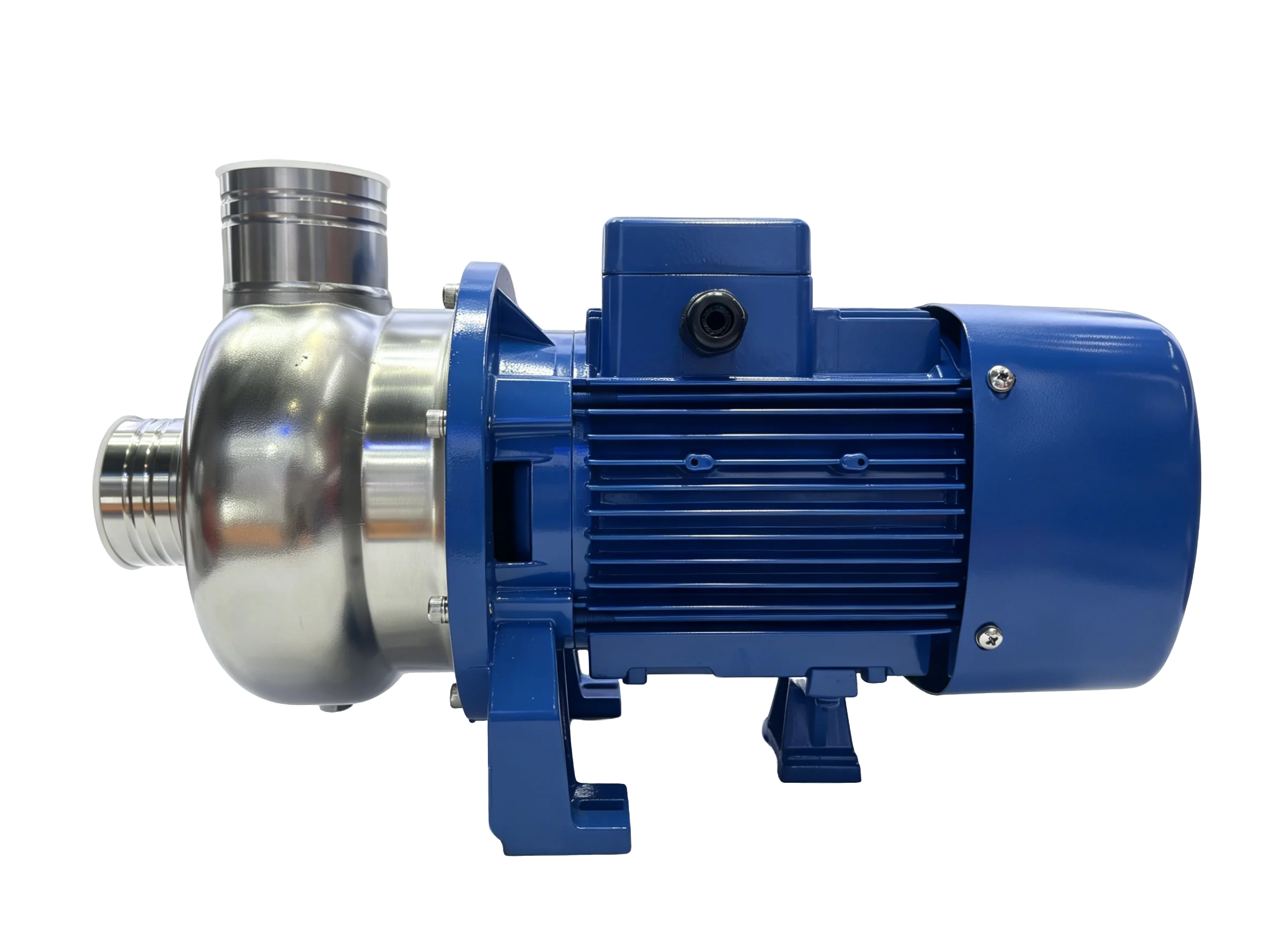

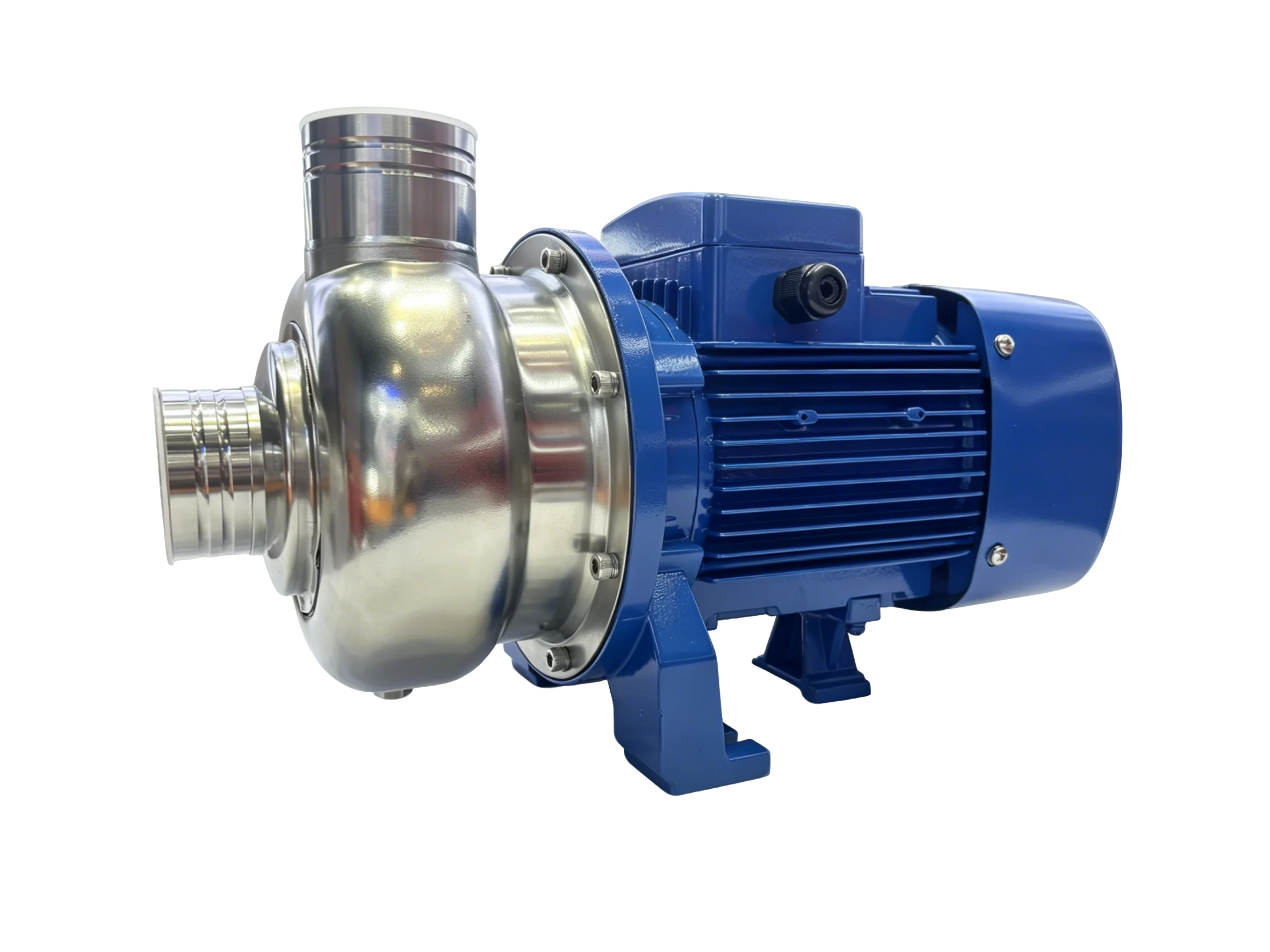

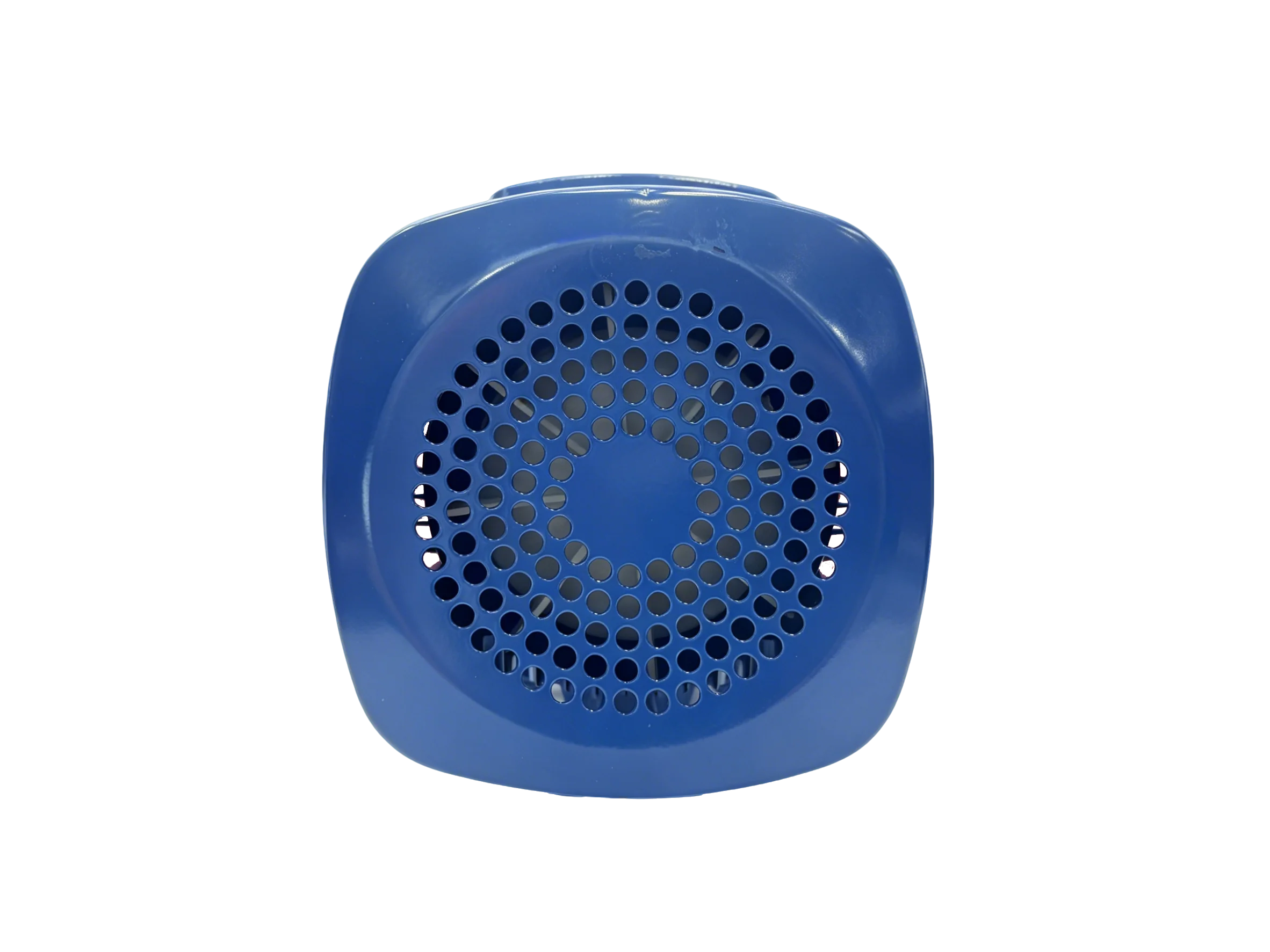

Centrifugal Pump YB Series

Name: Centrifugal Pump YB Series
Brand: YINJIA
Rating: 5.0 (43 reviews)


Availability:

Inquire Add to Basket

Model:
YK Series
Brand:
YINJIA

YINJIA Centrifugal Pump YB Series is designed for garden irrigation, clean-water work and open-impeller transfer duties. Key features include open impeller design, surface centrifugal serviceability and practical flow for garden systems, supporting clean-water flow, pressure stability and reseller-friendly model selection. Suitable for irrigation dealers and surface pump buyers. Contact YINJIA for application matching and wholesale orders.

Electric Water Pump Booster water pump Horizontal Centrifugal Pump Circulation Pump Motor Water Pump Agriculture Pump Water Pump Pressure Pump Centrifugal Pumps Water Pump

Product Description

APPLICATIONS

Water supply

Pressurization

Liquid transfer in industry and horticulture

Water circulation systems for heating and air conditioning

DESCRIPTION

Motor: Copper winding, IE2 efficiency, I.CI B, IPX4, Single phase with thermal protection

Motor shaft: AlSI304 welding shaft

Voltage & Frequency: 230V,380V: 50HZ,60HZ

Pump body: AISI304

Pumpcover: AISI304

Impeller: AISI304

Motor bracket: Aluminium

Mechanical seal: Ceramic-Graphite-NBR Graphite-SiC-EPDM

Liquid temperature: -15°C - +80°C

Ambient temperature: 0-40°C

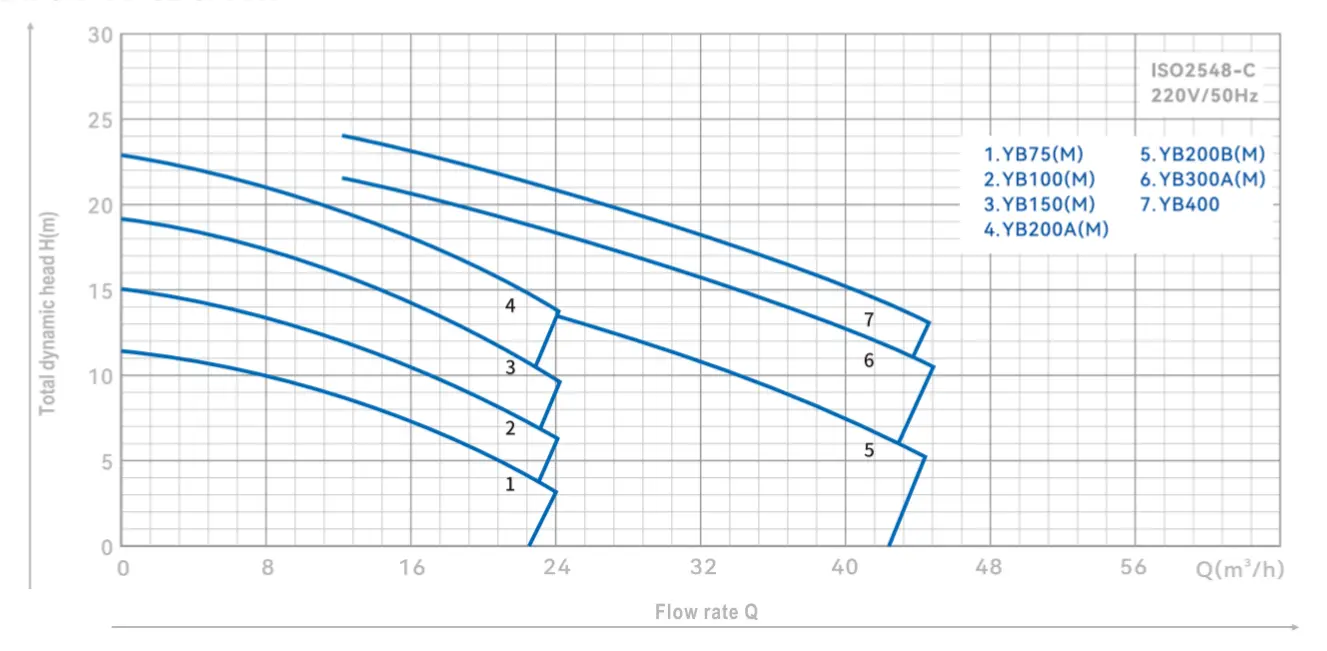

PERFORMANCE CHART

PERFORMANCE DATA

MODEL		P2		P1 (kW)	Ampere	Q(L/min-m³/h)									N.W
MODEL		P2		P1 (kW)	1~	100	200	300	400	550	700	800	950	1100	N.W
1~	3~	HP	kW	1~	1x220V 50HZ	6	12	18	24	33	42	48	57	66	(kg)
1~	3~	HP	kW	1~	1x220V 50HZ	H (m)									(kg)
YK100M	YK100	1	0.75	0.99	4.62	10.5	8	5.5	-	-	-	-	-	-	10
YK120M	YK120	1.2	0.9	1.19	5.3	12.5	10	7	-	-	-	-	-	-	10
YK150M	YK150	1.5	1.1	1.44	6.75	9.5	8.8	7.8	6.7	5	-	-	-	-	13.5
YK200M	YK200	2	1.5	1.89	8.95	12.7	12	11.2	10	8.3	6.5	-	-	-	16
YK300M	YK300	3	2.2	2.84	13.46	15	14	13.5	12.7	11.2	9.8	8.9	7.5	-	20.2
YK400M	YK400	4	3	3.6	6.2	17.5	16.8	16	15.2	14	12.5	11.5	9.7	7.5	25

MODEL		P2		P1 (kW)	Ampere	Q(L/min-m³/h)							N.W
MODEL		P2		P1 (kW)	1~	333	500	666	833	1000	1166	1333	N.W
1~	3~	HP	kW	1~	1x220V 50HZ	20	30	40	50	60	70	80	(kg)
1~	3~	HP	kW	1~	1x220V 50HZ	H (m)							(kg)
-	YK600	6	4.5	3.96	9.1	18.5	17	15.5	13.5	10.5	-	-	34
-	YK750	7.5	5.5	4.9	10.6	20	19	17.5	16	14	12	-	51
-	YK1000	10	7.5	6.75	14.5	23	22	18.5	18.5	17	14	10	56

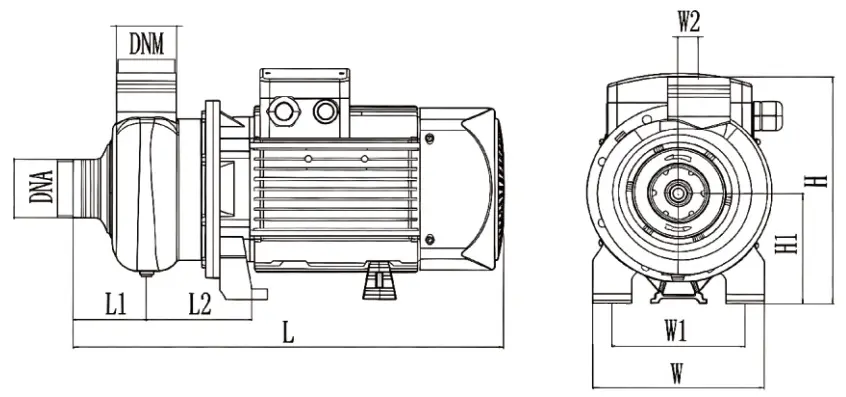

DIMENSIONS

MODEL	Dimensions(mm)											Package Dimension (mm)
MODEL	L	L1	L2	L3	W	W1	W2	H	H1	DNA	DNM	L	W	H
YK100/120 YB75/100	366	76	86	-	160	120	13	222	108	1.5"	1.5"	450	230	290
YK150/200 YB150/200(A/B)	420	82	101	-	180	140	20	244	119	2"	2"	450	230	290
YK/YB300	439	82	101	-	180	140	20	253	122	2"	2"	500	270	290
YK/YB400	462	82	101	-	180	140	20	253	122	2"	2"	500	270	290
YK600/YK750	520	92	153	140	340	190	30	320	132	2.5"	2"	520	340	320
YK1000	560	92	172	140	370	216	30	320	132	2.5"	2"	560	370	320
